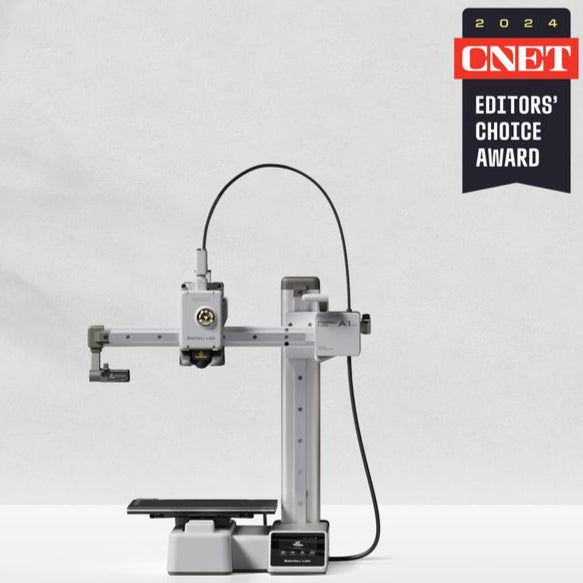

Bambu Lab A1 Mini 3D Printer

Build Volume:

180 x 180 x 180 mm³

Chassis:

Steel + Extruded Aluminum

Hot End:

All-Metal

Extruder Gears:

Hardened Steel

Nozzle:

Stainless Steel

Max Hot End Temperature:

300 ℃

Nozzle Diameter (Included):

0.4 mm

Nozzle Diameter (Optional):

0.2 mm, 0.6 mm, 0.8 mm

Filament Cutter:

Yes

Filament Diameter:

1.75 mm

Compatible Build Plate:

Bambu Textured PEI Plate

Bambu Smooth PEI Plate

Bambu Dual-Texture PEI Plate

Max Build Plate Temperature:

80 ℃

Max Speed of Toolhead:

500 mm/s

Max Acceleration of Toolhead:

10000 mm/s²

Max Hot End Flow:

28 mm³/s @ABS

(Model: 150*150 mm single wall;
Material: Bambu ABS;

Temperature: 280 ℃)

Part Cooling Fan:

Closed Loop Control

Hot End Fan:

Closed Loop Control

MC Board Cooling Fan:

Closed Loop Control

PLA, PETG, TPU, PVA:

Ideal

ABS, ASA, PC, PA, PET,

Carbon/Glass Fiber

Reinforced Polymer:

Not Recommended

Monitoring Camera:

Low Rate Camera (up to1080P)

Timelapse Supported

Filament Run Out Sensor:

Yes

Filament Odometry:

Yes

Power Loss Recover:

Yes

Filament Tangle Sensor:

Yes

Dimensions:

347 x 315 x 365 mm³

Net Weight :

5.5 kg

Input Voltage:

100-240 VAC, 50/60 Hz

Max Power:

150 W

Display:

2.4 inches 320*240 IPS Touch Screen

Connectivity:

Wi-Fi, Bambu-Bus

Storage:

Micro SD Card

Control Interface:

Touch Screen, APP, PC Application

Motion Controller:

Dual-Core Cortex M4

Slicer:

Bambu Studio supports third-party slicers

which export standard Gcode such as

SuperSlicer, PrusaSlicer and Cura, but certain
advanced features may not be supported.

Slicer Supported OS:

MacOS, Windows

Frequency Range:

2412 MHz - 2472 MHz (CE)

2412 MHz - 2462 MHz (FCC)

2400 MHz - 2483.5 MHz (SRRC)

Transmitter Power (EIRP):

≤ 21.5 dBm (FCC)

≤ 20 dBm (CE/SRRC)

Protocol:

IEEE 802.11 b/g/n
